ParSave® 2 - Bearing Isolator

Bearing Isolator

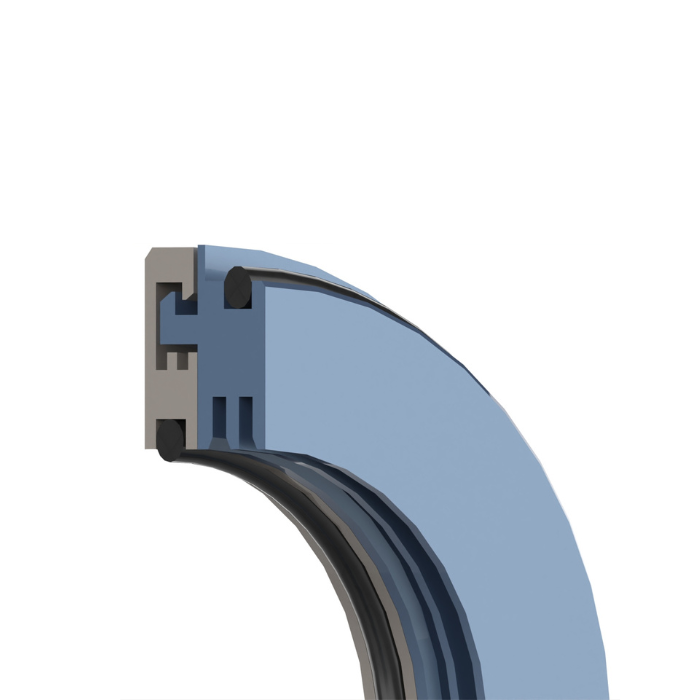

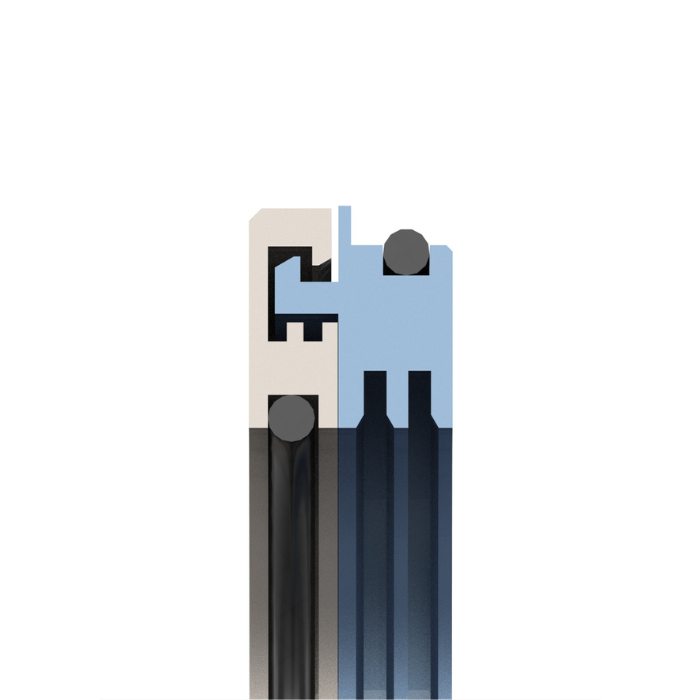

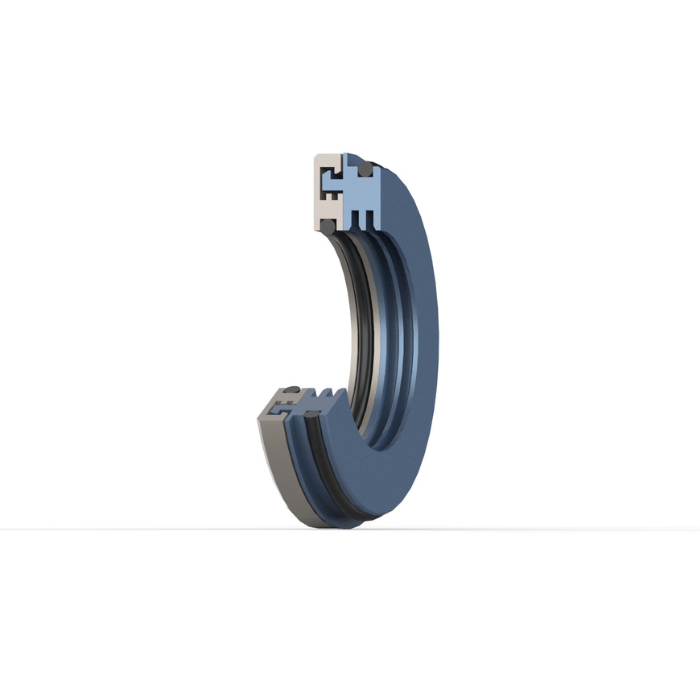

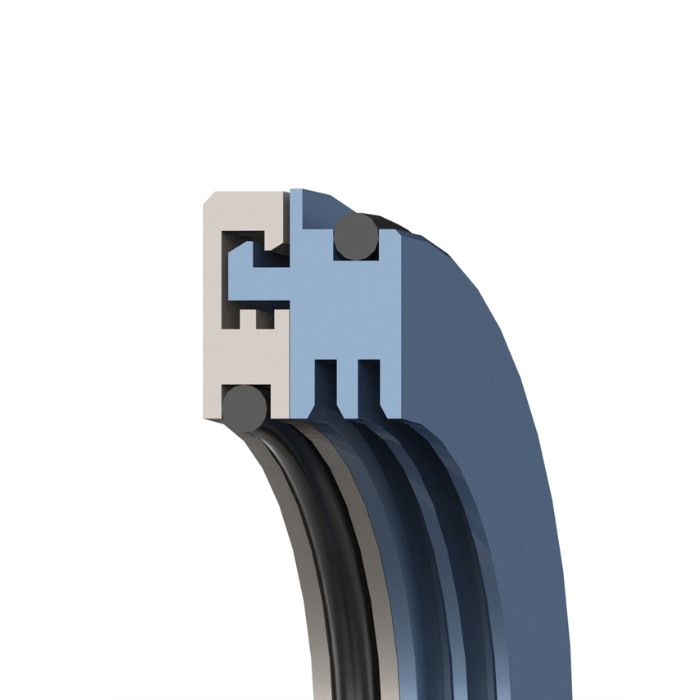

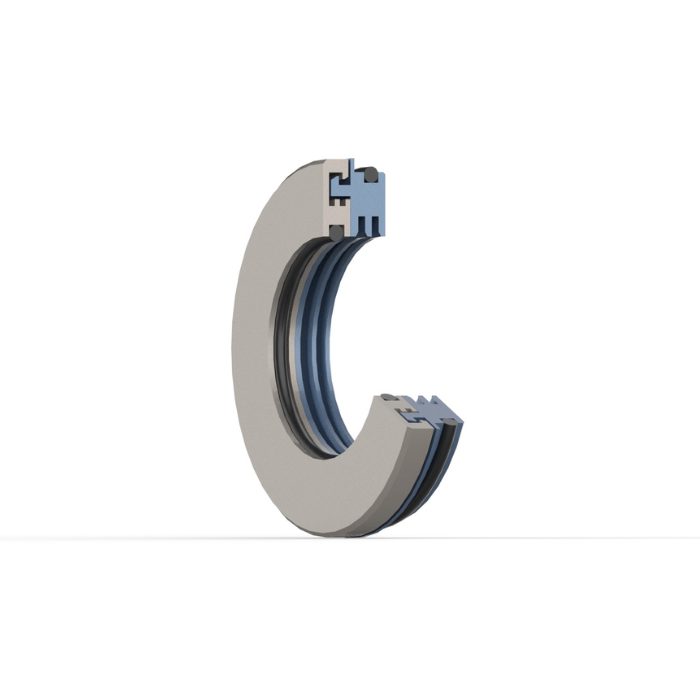

Covered rotary cover design with the double labyrinth path

  • Effectively isolate the contact of the bearing lubricating oil and other substances such as, atmospheric dust or water spray
  • Achieve complete isolation for extremely harsh environments
  • Usually used in horizontal equipment and is highly recommended for the upper position of vertical equipments
  • Highly Resistant PTFE-compound
  • No Lubrication Required
  • Dry Running
  • No Installation Jig.
  • Customization
  • Cartridge unit

Application Range

  • Pressure: 0 bar
  • Speed: 25m/sec
  • Temperature: -40°C ~ - 120°C
  • Shaft size: Ø 20 ~ 200mm

Common Applications

Petrochemical Industry

Pharmaceutical Industry

Food and Beverage Industry

Infrastructure Industry

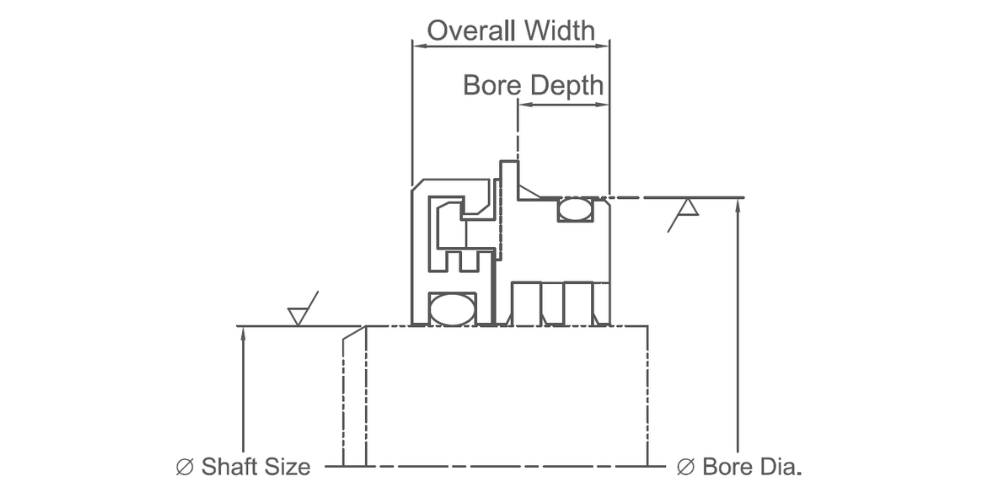

Guidelines for the Selection of Special Sizes

TypeShaft SizeBore DiaBore DepthOverall Width
Metric Standard (mm)
PS2M20 ~ 50Shaft + 12 ~ 30816
PS2M51 ~ 100Shaft + 15 ~ 35817
PS2M101 ~ 150Shaft + 15 ~ 40918
PS2M151 ~ 200Shaft + 15 ~ 451019
Imperial English Standard (inch)
PS2 X0.750 ~ 2.000Shaft + 0.500 ~ 1.2500.3150.63
PS2 X2.001 ~ 4.000Shaft + 0.625 ~ 1.3750.3150.67
PS2 X4.001 ~ 6.000Shaft + 0.625 ~ 1.5750.3550.71
PS2 X6.001 ~ 8.000Shaft + 0.625 ~ 1.7500.3930.75
CodeReferenceCompound
T01TVirgin PTFE
O03TPTFE + Carbon + Graphite
F06TPTFE + Glass Fiber
Y09TPTFE + Graphite
XOther RequirementFor other requirement, please contact us.
CodeMaterial
1Viton (FKM)
2NBR
3Alflas
4Silicone
5FFKM
