ParDual® - Mechanical Seal

Mechanical Seal

Dual Cartridge Seal for Pump, Compressor....

  • Double Seal of Back to Back
  • Balanced
  • Multiple Springs Stationary
  • Cartridge Seal
  • Double Pressure Balanced
  • Integrated Pumping Device

Application Range

  • Pressure : FV~25 bar
  • Temperature : -20~220°C
  • Sliding Velocity : Vg=Max 16m/s
  • Shaft Size : Ø25(1")~Ø70mm(3")
  • For further details, please contact Parjet.

Common Applications

Petrochemical Industry

Pharmaceutical Industry

Food and Beverage Industry

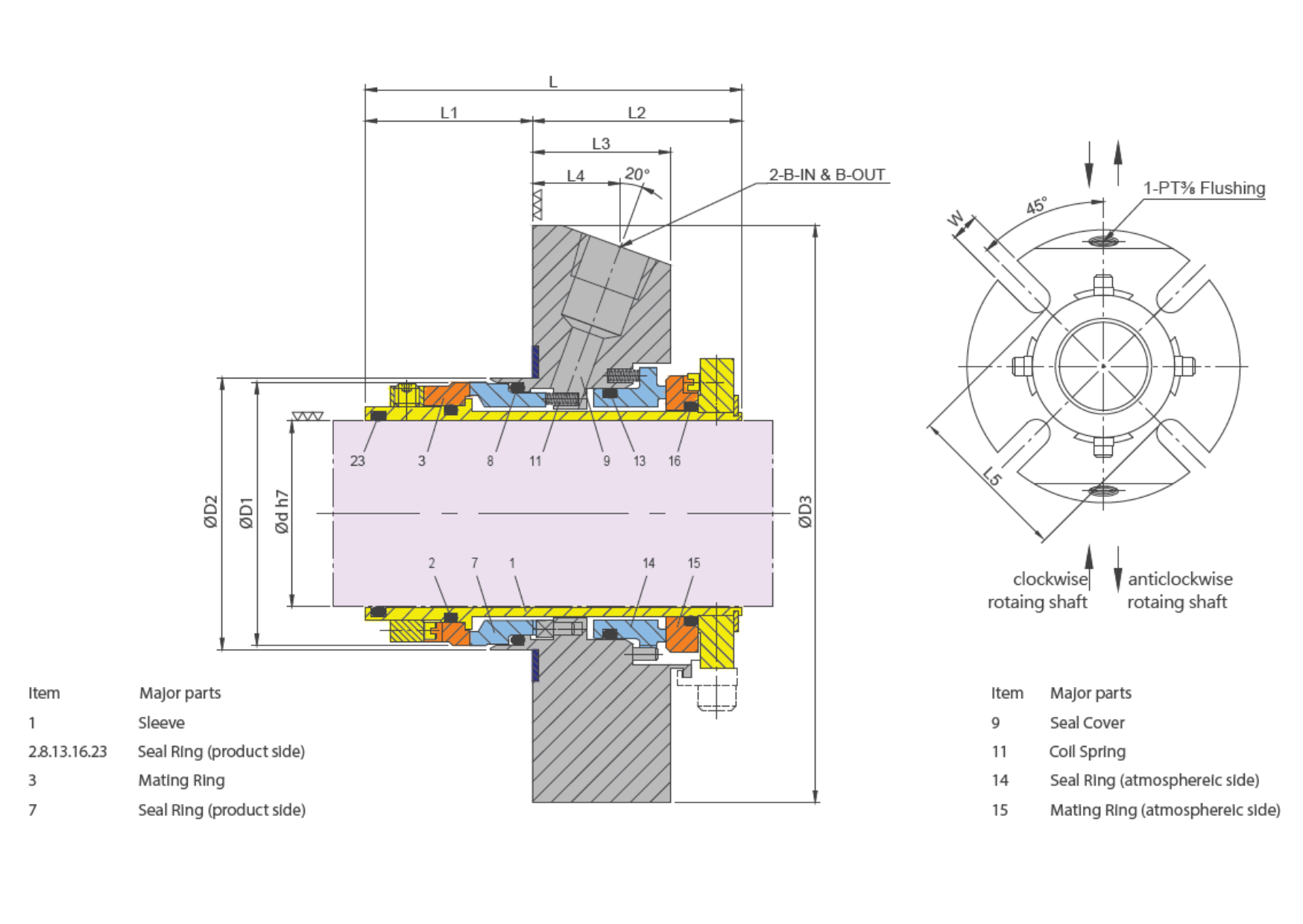

Guidelines for the Selection of Special Sizes

Unit: mm
⌀d⌀D1⌀D2
(Min.)
⌀D2
(Max.)
⌀D3LL1L2L3L4L5W
2544465110890405033166212
2848505510890405033176512
3048505710890405033176712
3251536011890405033177014
3554556111890405033177214
3856586412890405033197514
4059616612890405033188014
4361636813890405033198014
4563657013890405033218214
4867697513890405033188814
5072747813890405033159014
5574768013890405033179514
60828488148904050331710218
65858892158914051331810918
709496105168914051331811818

Seal Face : (Process side)—S-Sic x Carbon (Max0.3 wt%)
S-Sic x S-Sic (Max10wt%)
(Atm side)— S-Sic x Carbon
Metal : SUS316 (Special Material upon Request.)
O Ring : Viton (Standard), EPDM, Chemfluor F668 (FFKM)
